Products / Batten Light
LED Batten Light
BAT1S1 Series
The Dilux BAT1S1 Series LED Batten Light is a durable, high-performance lighting solution designed for demanding commercial and industrial environments.
Featuring a robust IP66 weatherproof and IK08 impact-resistant construction, it delivers reliable, energy-efficient illumination in both indoor and outdoor applications. Available with motion sensor and emergency battery options.
Key Features
Long lifespan of 55,000+ hours
Motion sensor and emergency battery options available
Suitable for surface or suspended installation
5-year warranty
High-output LED performance
IP66 weatherproof protection
IK08 impact-resistant housing
High colour rendering (CRI >85)
Gallery
Specifications
| Product Information | |
|---|---|
| Product Code | BAT1S1.W-40W4K-WP |
| Light Type | Surface Batten |
| Product Colour | Grey |

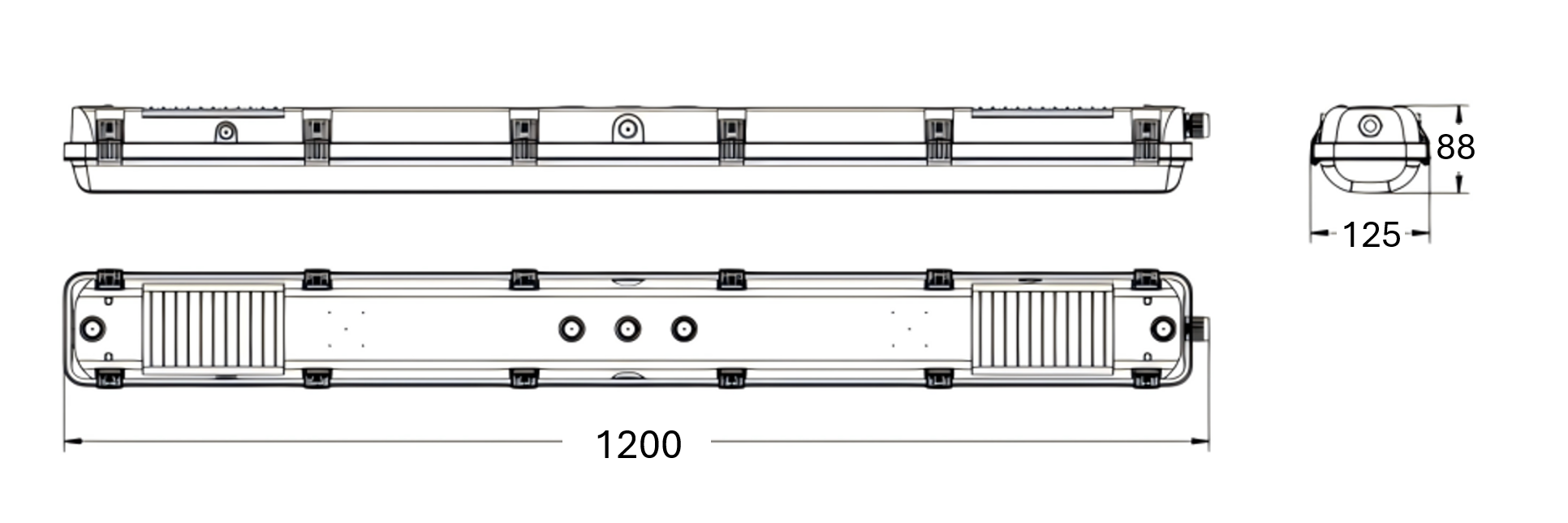

| Dimension | 1200 x 125 x 88 mm |
| Function | Regular / Motion Sensor Option |
| Emergency Battery | Option |
| Weight | 1,500 g |
| Light Performance | |
| Power (W) | 40W |
| Lumen Output | 5,000 lm |
| Beam Angle | 120° |
| Correlated Colour Temp (CCT) | 4000K |
| Input Voltage | 220–240VAC |
| IP Rate | IP66 |
|---|---|
| IK Rate | IK08 |
| CRI | >85 |
| SDCM | 3 |
| UGR | <22 |
| Lifetime (@Ta 25°C) | >55,000h |
| Operating Ambient Temperature | 0°C to 40°C |
| Warranty Period | 5 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | N/A |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the BAT1S1 for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
