LED Panel Light
PAL1S1 Series
The Dilux PAL1S1 Series LED Panel Light is a premium recessed lighting solution designed to provide comfortable, energy-efficient lighting for modern commercial interiors.
Featuring a slim profile, low-glare optics, and a high-performance flicker-free LED driver, it delivers uniform illumination and excellent visual comfort. With Dim/DALI control options, the PAL1S1 Series offers flexible energy management and intelligent lighting control capabilities.
Key Features
Slim recessed LED panel design
Uniform, low-glare illumination (UGR <19)
High colour rendering (CRI >85)
Dim/DALI control options
Energy-efficient LED technology
Long lifespan of 55,000+ hours
5-year warranty
Gallery
Specifications
| Product Information | |
|---|---|
| Product Code | PAL1S1.W.0312-40W4K |
| Light Type | Recessed Panel Light |
| Product Colour | White |

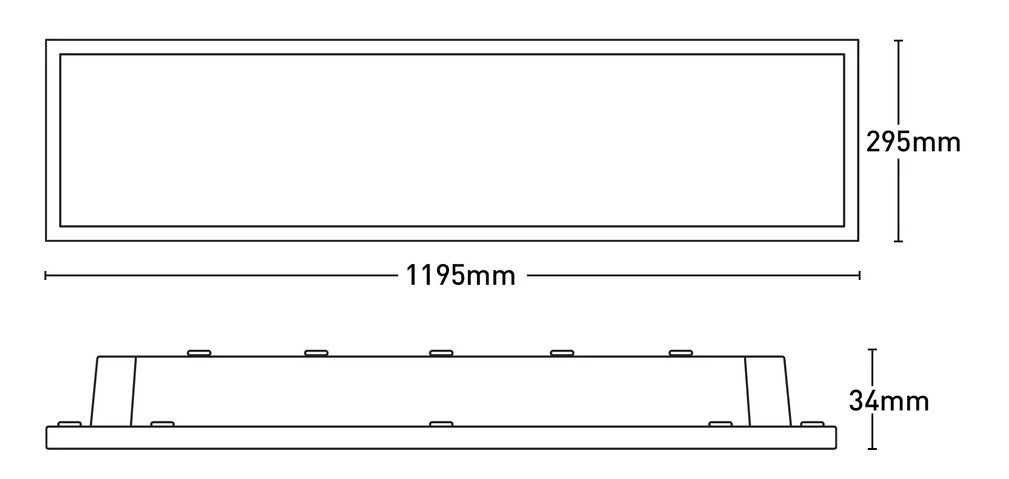

| Dimension | 295 x 1195 x 34 mm |
| Weight | 1,750 g |
| Light Performance | |
| Power (W) | 40W |
| Lumen Output | 4,000 lm |
| Beam Angle | 90° |
| Correlated Colour Temp (CCT) | 4000K |
| Input Voltage | 200–240VAC |
| IP Rate | IP20 |
|---|---|
| IK Rate | IK02 |
| CRI | >85 |
| SDCM | 3 |
| UGR | <19 |
| Lifetime (@Ta 25°C) | >55,000h |
| Operating Ambient Temperature | -10°C to 40°C |
| Warranty Period | 5 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | Non-Dim (Dim/DALI Option) |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the PAL1S1 for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
