Products / Highbay
LED Highbay
HB1 Series
The Dilux HB1 Series LED Highbay is a high-performance industrial lighting solution. Selectable power and colour temperature settings give you the flexibility to suit a wide range of installation requirements while maximising energy efficiency.
Built with a durable die-cast aluminium housing and rated IP65, the HB1 Series delivers reliable, long-lasting performance in demanding industrial environments.
Key Features
Selectable power: 120W / 160W / 200W
High-output LED performance, up to 32,000 lm
IP65 dust and water protection
Long lifespan of 50,000 hours
5-year warranty
Selectable colour temperature: 3000K / 4000K / 5000K
Die-cast aluminium housing
Wide 120° beam distribution
Easy installation and replacement
Gallery
Specifications
| Product Information | |
|---|---|
| Product Code | HB1S200WAJV2 |
| Light Type | Highbay |
| Product Colour | Black |

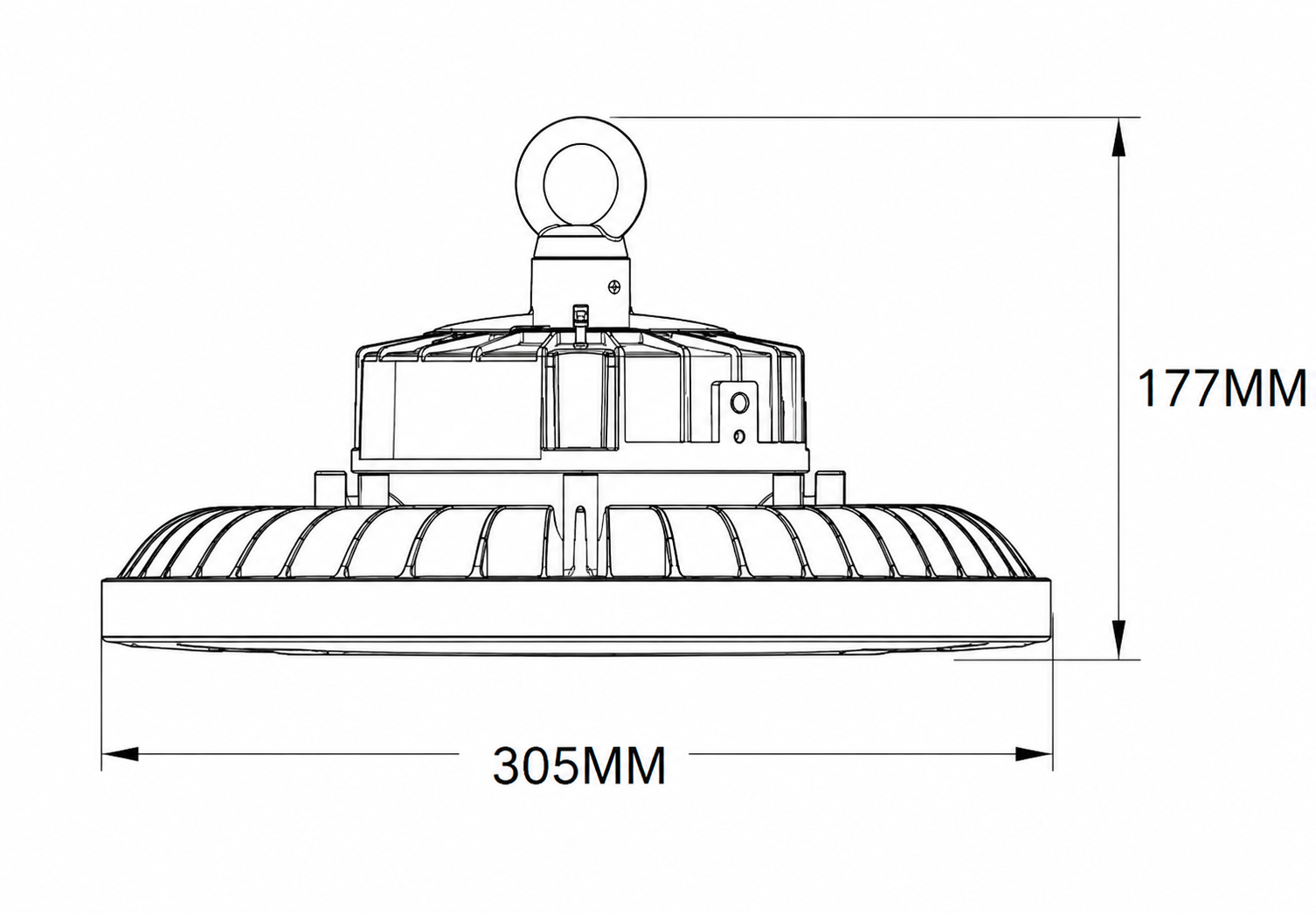

| Dimension | 305 x 177 mm |
| Light Performance | |
| Power (W) | 120W / 160W / 200W |
| Lumen Output | 19,200 lm / 25,600 lm / 32,000 lm |
| Beam Angle | 120° |
| Correlated Colour Temp (CCT) | 3000K / 4000K / 5000K |
| Input Voltage | 220–277VAC |
| IP Rate | IP65 |
|---|---|
| IK Rate | IK08 |
| CRI | >80 |
| SDCM | 5 |
| Lifetime (@Ta 50°C) | >50,000h |
| Operating Ambient Temperature | -20°C to 40°C |
| Warranty Period | 5 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | Non-Dim (Dim Option) |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the HB1 for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
