Products / Floodlight

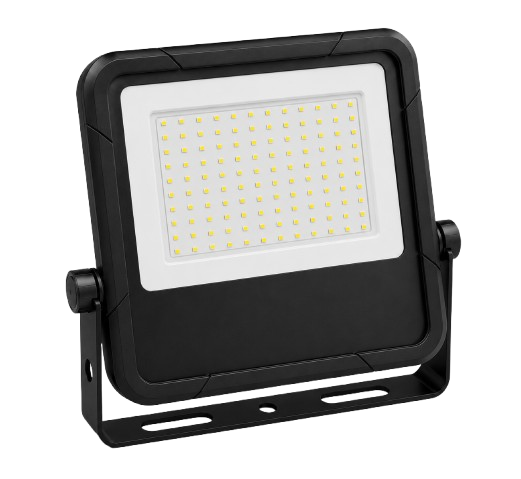

LED Floodlight
FD1S1 Series
The Dilux FD1S1 Series LED Floodlight is a high-performance lighting solution engineered for demanding outdoor and industrial applications.
Featuring a robust IP66 weatherproof and IK08 impact-resistant construction, it delivers powerful, energy-efficient illumination and reliable performance in harsh environments.
Key Features
High-output LED performance
IP66 weatherproof protection
IK08 impact-resistant housing
Wide 120° beam angle
Energy-efficient LED technology
Long lifespan of 55,000+ hours
Suitable for demanding outdoor and industrial environments
5-year warranty
Gallery
Specifications
| Product Information | ||
|---|---|---|
| Product Code | FD1S1.B-50W5K-WP | FD1S1.B-100W5K-WP |
| Light Type | Floodlight | Floodlight |
| Product Colour | Black | Black |

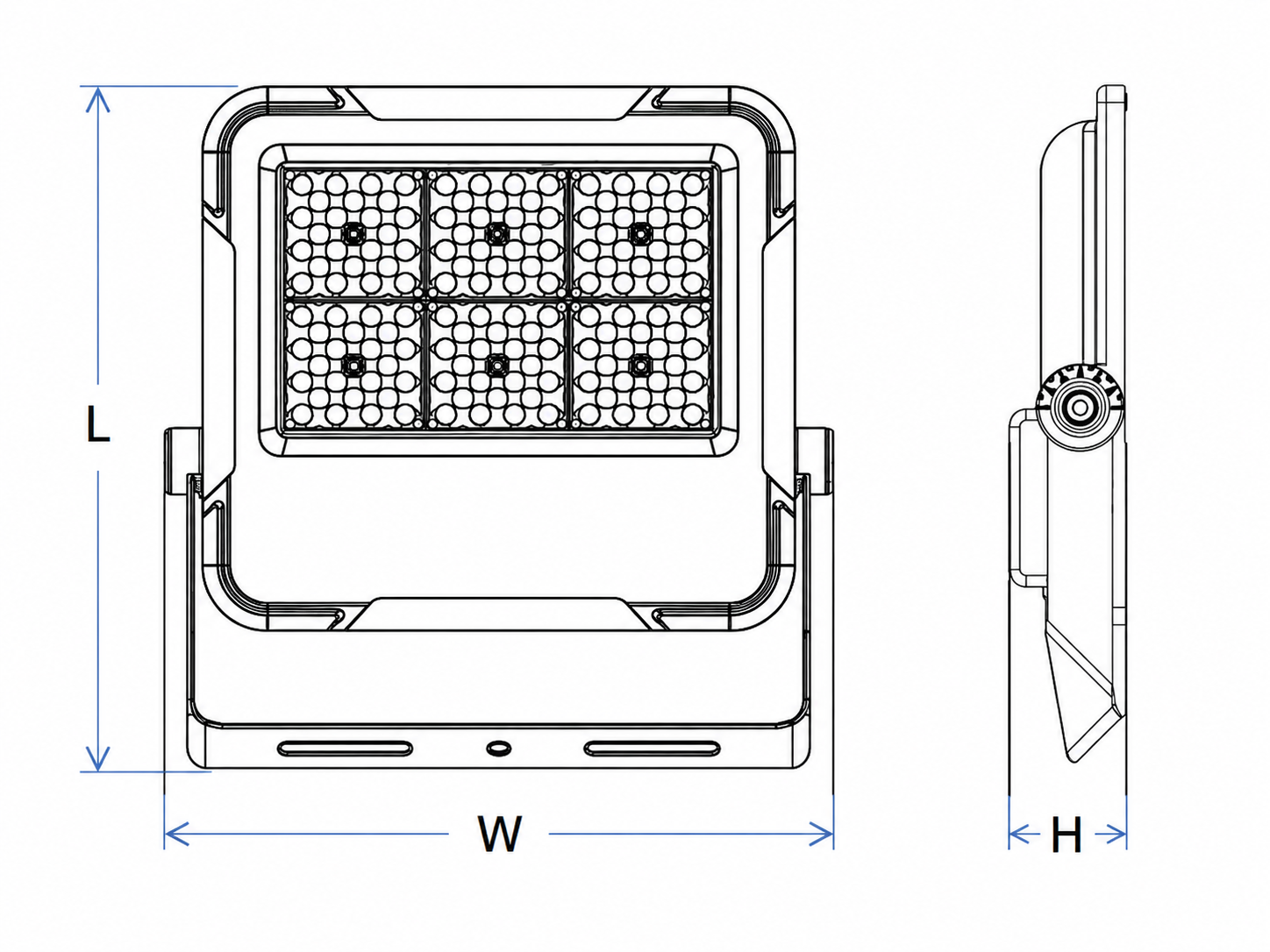

| Dimension | 254 x 239 x 38 mm | 302 x 314 x 49 mm |
| Weight | 1,550 g | 2,550 g |
| Light Performance | ||
| Power (W) | 50W | 100W |
| Lumen Output | 7,500 lm | 15,000 lm |
| Beam Angle | 120° | 120° |
| Correlated Colour Temp (CCT) | 5000K | 5000K |
| Input Voltage | 100–277VAC | 100–277VAC |
| IP Rate | IP66 |
|---|---|
| IK Rate | IK08 |
| CRI | >80 |
| SDCM | 5 |
| THD | ≤10% |
| Lifetime (@Ta 50°C) | >55,000h |
| Operating Ambient Temperature | -30°C to 50°C |
| Warranty Period | 5 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | N/A |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the FD1S1 for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
