Products / Downlight
LED Downlight
DL1S1 Series
The Dilux DL1S1 Series LED Downlight is a modern recessed light designed to provide comfortable, energy-efficient lighting for homes and commercial spaces.
It features selectable 3CCT technology, high colour rendering, and a flicker-free dimmable driver for flexible lighting and excellent visual comfort. Its compact design and reliable performance make it ideal for both new installations and retrofit projects.
Key Features
Recessed LED downlight
Selectable 3CCT (3000K / 4000K / 5000K)
High colour rendering (CRI >90)
Smooth dimming capability
Energy-efficient LED technology
Long lifespan of 55,000+ hours
Compact design for easy installation
3-year warranty
Gallery
Specifications
| Product Information | |
|---|---|
| Product Code | DL1S1.W-10W3CCT |
| Light Type | Recessed Downlight |
| Product Colour | White |

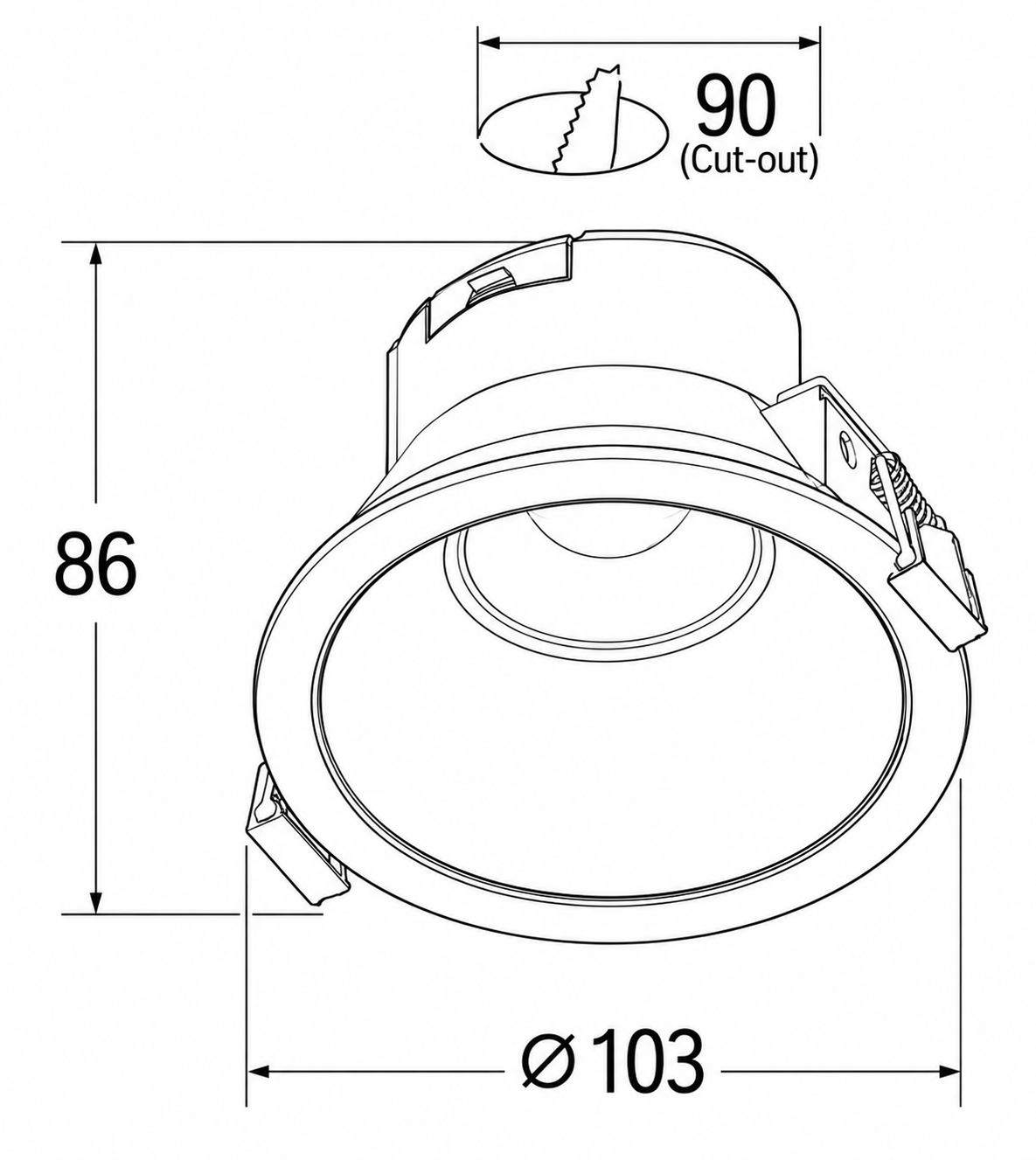

| Dimension | Ø103 x 86 mm |
| Cutout | 90 mm |
| Weight | 220 g |
| Light Performance | |
| Power (W) | 10W |
| Lumen Output | 900 lm |
| Beam Angle | 60° |
| Correlated Colour Temp (CCT) | 3000K / 4000K / 5000K |
| Input Voltage | 100–240VAC |
| IP Rate | IP20 |
|---|---|
| IK Rate | IK07 |
| CRI | >90 |
| SDCM | 3 |
| UGR | <22 |
| Lifetime (@Ta 25°C) | >55,000h |
| Operating Ambient Temperature | -10°C to 35°C |
| Warranty Period | 3 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | Dim |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the DL1S1 for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
