Products / Pole Light
LED Pole Light
STL1 Series

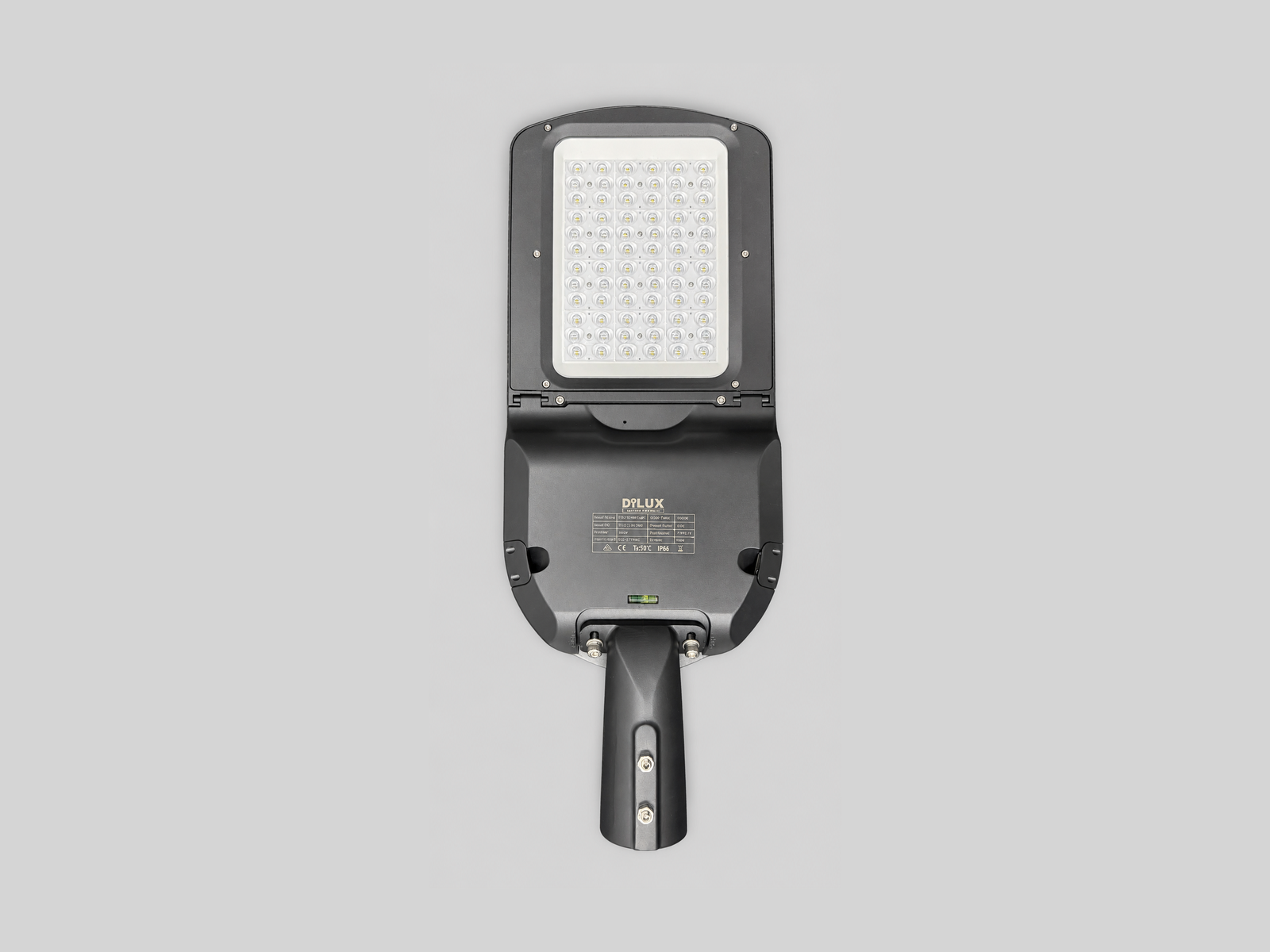

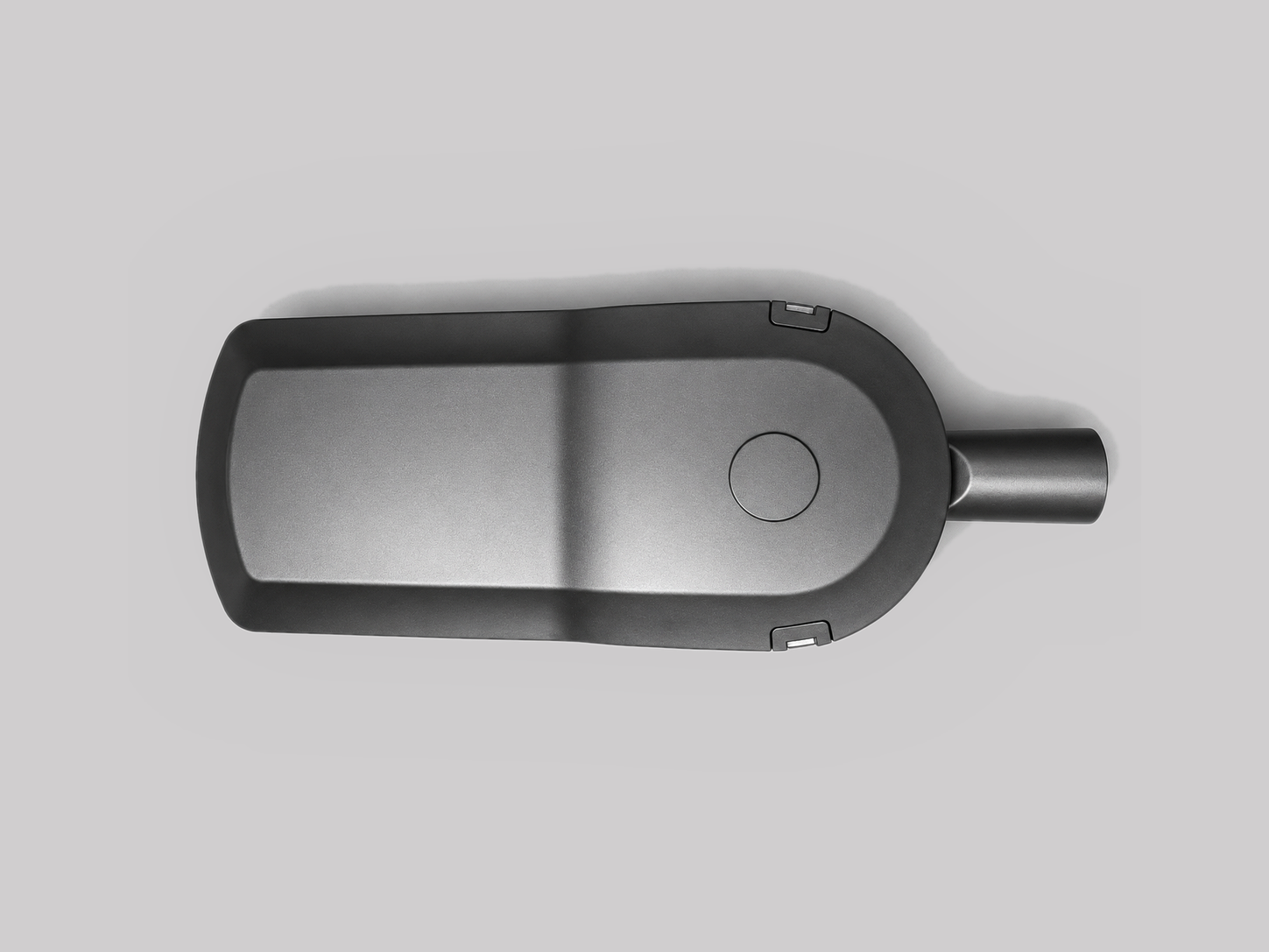

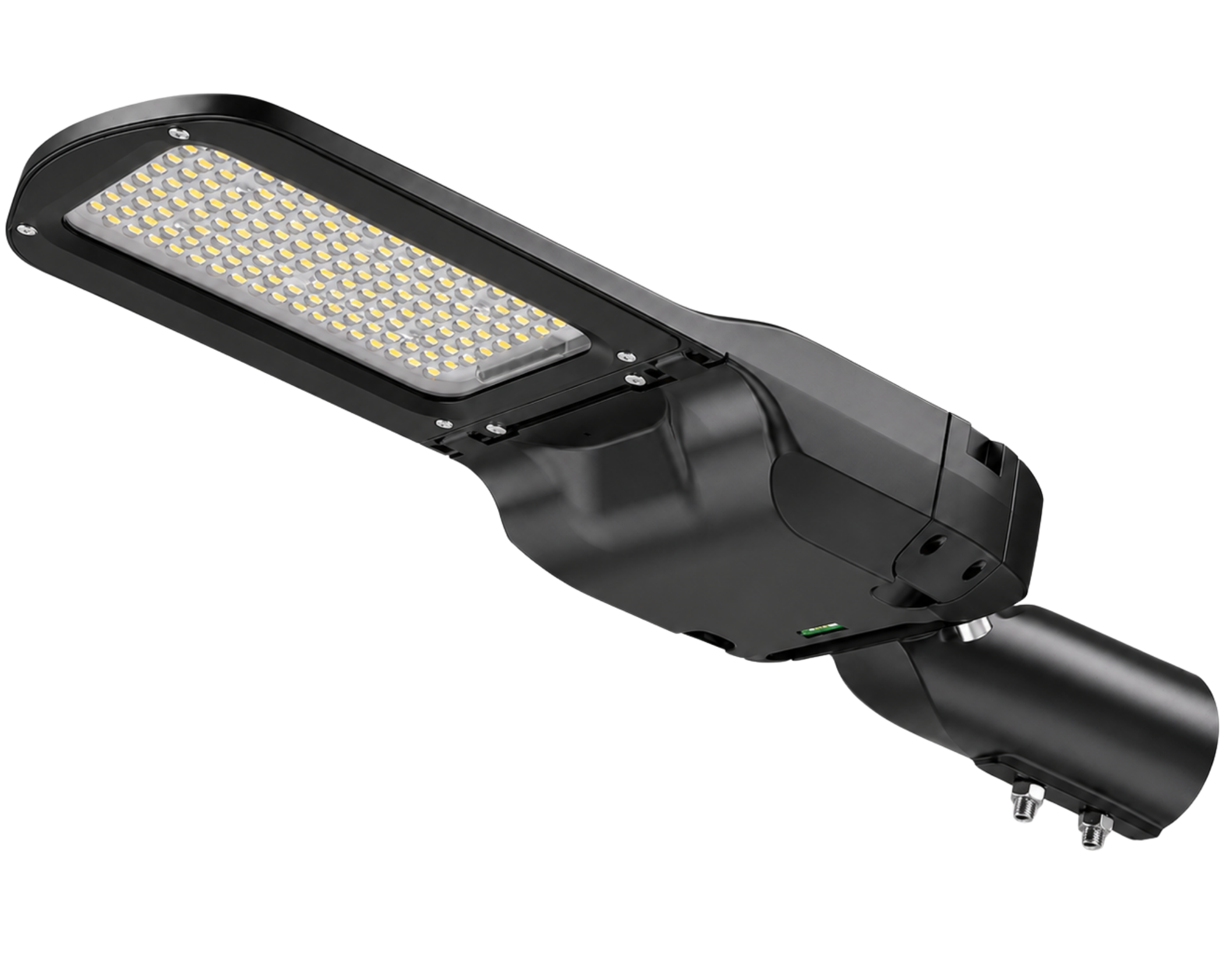

The Dilux STL1 Series LED Pole Light is a high-performance outdoor lighting solution designed to provide reliable and energy-efficient illumination for outdoor areas.
Featuring a durable IP66 weatherproof and IK08 impact-resistant construction, it is built to withstand harsh outdoor environments while delivering consistent lighting performance. With a modern design and wide beam distribution, the STL1 Series offers durability, efficiency, and long-term reliability for a wide range of outdoor applications.
Key Features
High-output LED performance
Modern, streamlined luminaire design
IP66 weatherproof protection
IK08 impact-resistant housing
Wide beam distribution
Energy-efficient LED technology
Long lifespan of 50,000+ hours
5-year warranty
Gallery
Specifications
| Product Information | ||
|---|---|---|
| Product Code | STL1V2-100W5K-WP | STL1V2-140W5K-WP |
| Light Type | Pole Light | Pole Light |
| Product Colour | Dark Grey / Black | Dark Grey / Black |

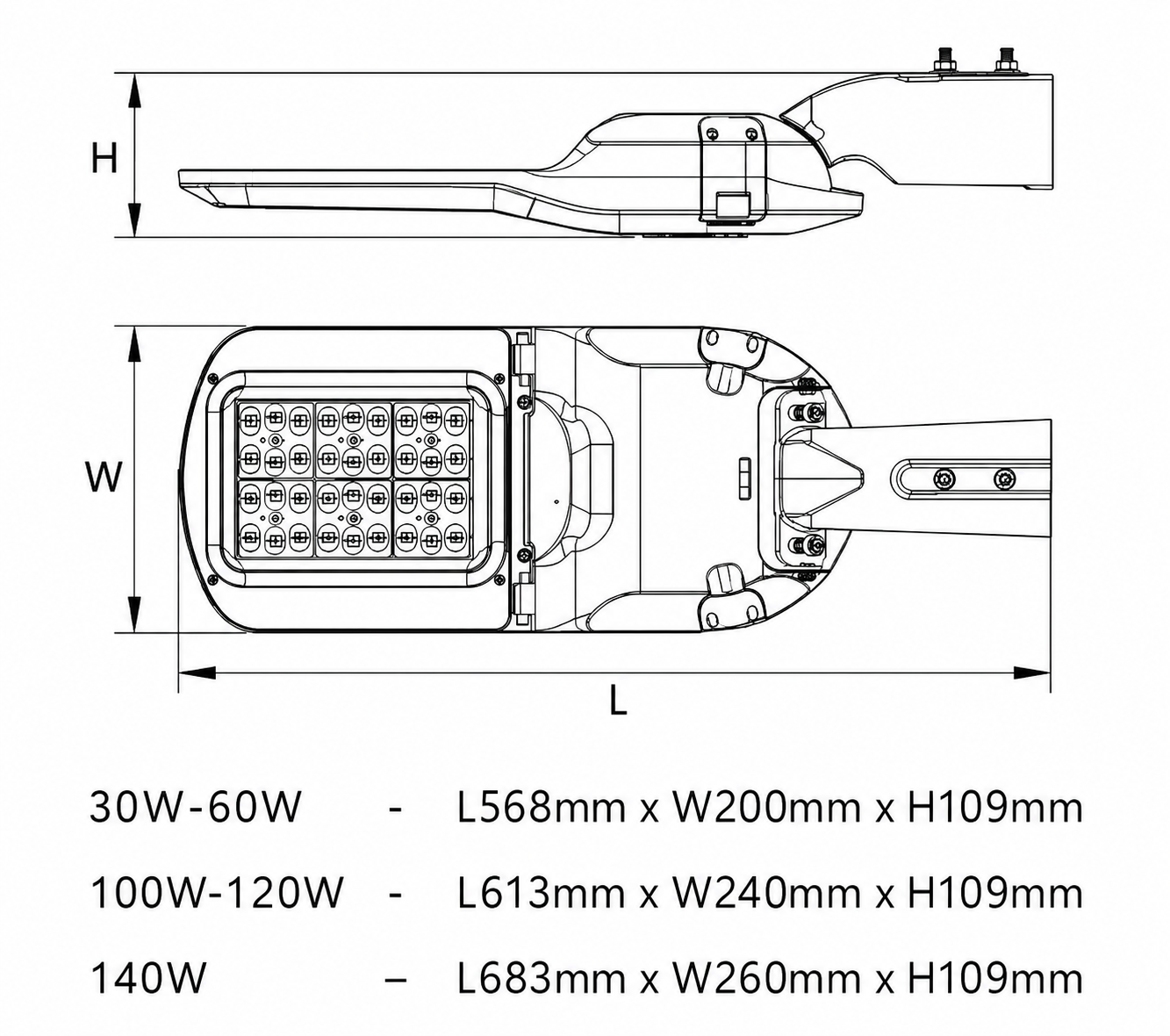

| Dimension | 613 x 240 x 109 mm | 683 x 260 x 109 mm |
| Spigot Dimension | 60 mm | 60 mm |
| Weight | 5,000 g | 6,000 g |
| Light Performance | ||
| Power (W) | 100W | 140W |
| Lumen Output | 14,000 lm | 19,000 lm |
| Beam Angle | 135° | 135° |
| Correlated Colour Temp (CCT) | 5000K | 5000K |
| Input Voltage | 100–240VAC | 100–240VAC |
| IP Rate | IP66 |
|---|---|
| IK Rate | IK08 |
| CRI | >80 |
| SDCM | 5 |
| Lifetime (@Ta 50°C) | >50,000h |
| Operating Ambient Temperature | -30°C to 50°C |
| Warranty Period | 5 Years |
| Driver | |
| Driver Type | Flicker Free Driver |
| Dimmable | N/A |
WARRANTY
Downloads
All files supplied by Dilux Lighting Australia. IES files are provided for lighting design software.
Specifying the STL1 SERIES for a project?
Send through your requirements and we will come back to you with pricing, availability and technical support.
